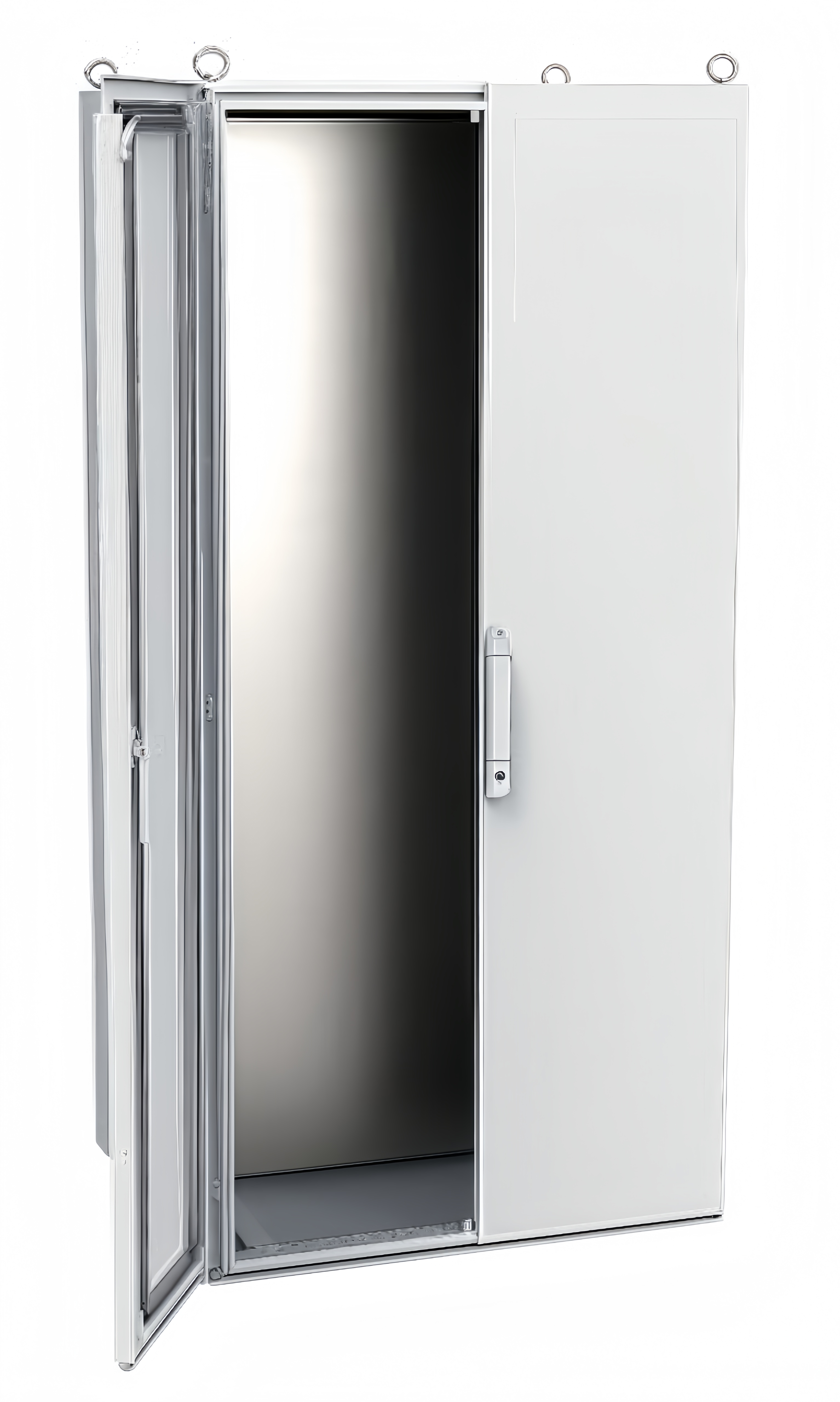

Sixteen fold frame type universal control cabinet

ecise positioning of the installation plate with module holes in 25mm units, using plastic sliders to easily push the installation plate, making single person assembly more convenient. Symmetrical frame structure allows for quick cabinet merging, stable and long-lasting, regardless of front, rear, left, right, or upward direction. The concept of standardization and modularization provides various perfect, fast, and cost-effective solutions for various industries. Using the same system accessories for internal expansion of width and height provides higher internal scalability and provides users with more installation possibilities. The frame profile undergoes electrophoretic technology, which significantly outperforms traditional processes in terms of anticorrosion and rust resistance. The symmetrical plane on the frame has the same module holes in width and height, which can expand a variety of accessories and increase installation space. Can achieve multi directional cabinet consolidation, providing customers with more flexible on-site solutions. JCTS frame profiles provide perfect static mechanical properties and spacious internal installation space, completely processed by Judeng itself. The processing process of the fully automatic rolling line ensures high quality and low cost.
